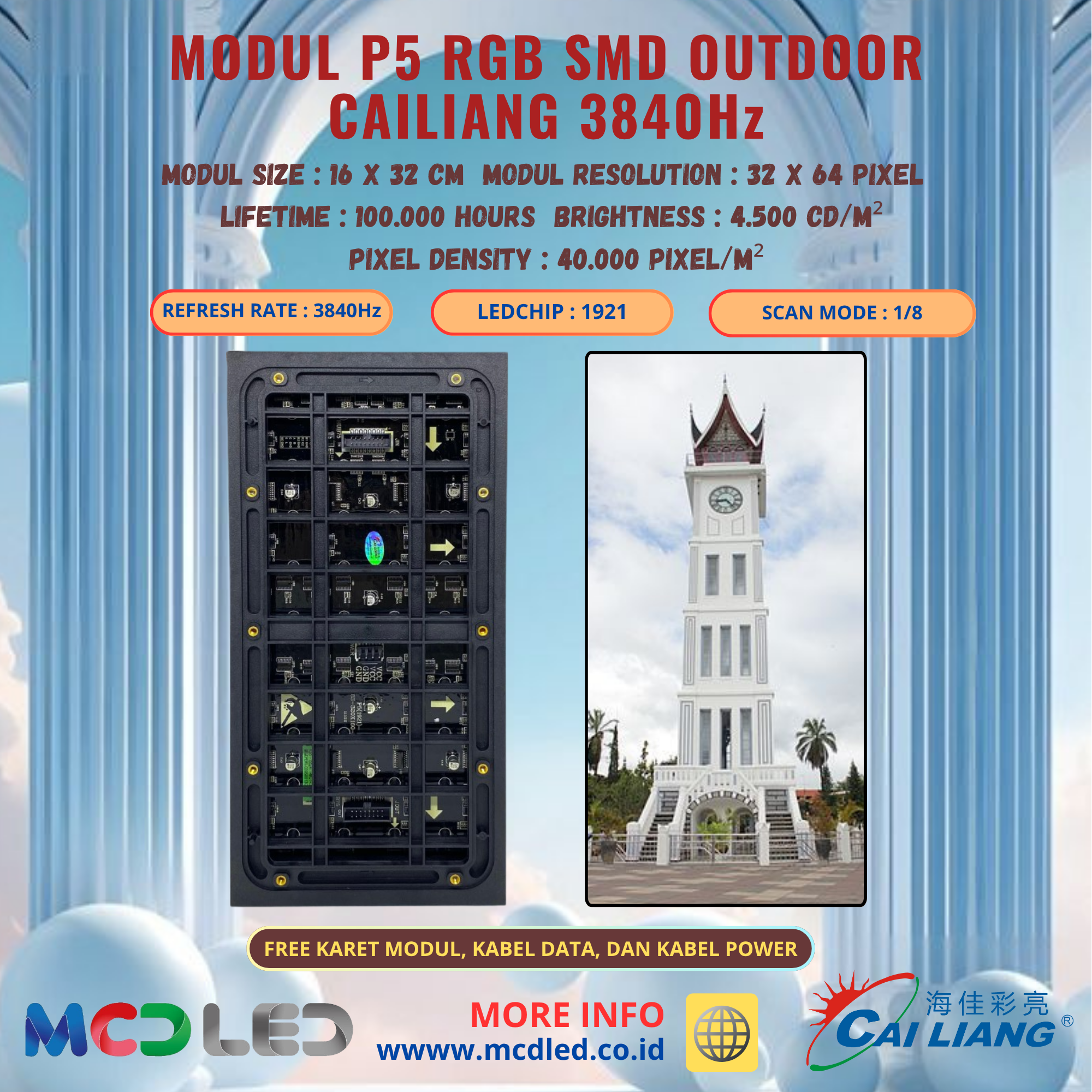

MODUL P5 RGB SMD FULL COLOR OUTDOOR CAILIANG 3840 HZ
1. Pixel Spesification
1. Specifications : P5 (D5) SMD outdoor Full Color
2. Pixel Configuration : 1R1G1B
3. Pixel Density : 40,000 (dot/㎡)
4. Pixel Pitch : 5mm
2. Module Specifications
1. Module Resolution :64*32=2048(dot)
2. Module Size : 320*160mm
3. PCB Thickness : 1.6mm
4. Plastic Base & Mask : JXS
3. Screen Parameters
A. Structure Representation
1. Structure Explain: every pixel consist of red blue and green chips
2. IC: ICN2037 Lamp Encapsulation: SMD LED 1921/2525
3. Encapsulation Manufacturer
B. Specialty Analysis
Blendent Analysis : To achieve the best white balance effect, Strict requirements to LED Brightness , The color proportion is R：G ：B=3：6：1
Specification Requirements
1. Pixel
1. Pitch : 5mm
2. Pixel Configuration : 1R1G1B
3. Pixel Density : 40,000 dot/㎡
2. Module
1. Module Resolution : 64dot*32dot
2. Module Size : 320*160mm
3. Module Pixel : 64dot*32dot=2048dot
4. View Angle : Horizontal 150°，Vertical 120°
5. Best View Distance : 5m～50m
6. Work Temperature : -10℃～75℃
7. Environment Humidity : 10%—90%RH
8. Storage Temperature : -30ºC～+90ºC
9. Protection Grade : IP65
10. System Guard : Moistureproof ,dust proof , resist high temperature, corrosion prevention, prevent burn,static-free,shock resistant,resist lightning
3. Power Supply
1. Supply Voltage : AC110V－220V±15%，40－65Hz
2. Average Power : 380w/㎡
3. Max. Power : 480w/㎡
4. Control System
1. Control Host : Lenovo or above
2. Control system : WIN 98/ 2000/ XP
3. Control Method : Control with the computer
4. GPU : DVI GPU
5. Diving Method : Constant Current
6. Refresh Rate : 3840Hz
7. Frame Frequency : ≥60Hz
8. Grayscale : Single Color 16384 Level
9. Color : 10.7 Hundred Million
10. Brightness : ≥4500CD/M2
11. Scan mode : 1/5
12. Brightness Adjustment : Manual & Automatically
13. Video Signal : RF,S-Video,RGB,RGBHV,YUV,YC,.etc
14. Control System : PCTV＋DVI GPU＋Master card＋ Network Cable
15. Mean Time Between Failure : 10000 hour
16. Lifetime : 100 thousand hours
17. Flatness : Between adjacent pixels≤0.5mm；
18. Brightness Uniformity : Pixel light intensity, MODULE brightness is balance≤0.1
19. Malfunction dot rate : ＜0.0001
5. Wire
1. Effective Communication Distance : National transmission distance 100m,Optical fiber transmission distance≥100m
