Selamat Datang di MCD LED , untuk reseller, pembuat dan perakit running text silahkan bergabung dengan kami untuk mendapatkan harga special

HD-W63

KategoriKONTROLER HD, KONTROLER HD 1-3 WARNA, KONTROLER RUNNING TEXT 1 & 3 WARNA
Di lihat867 kali
Harga Rp 335.000

Detail Produk HD-W63

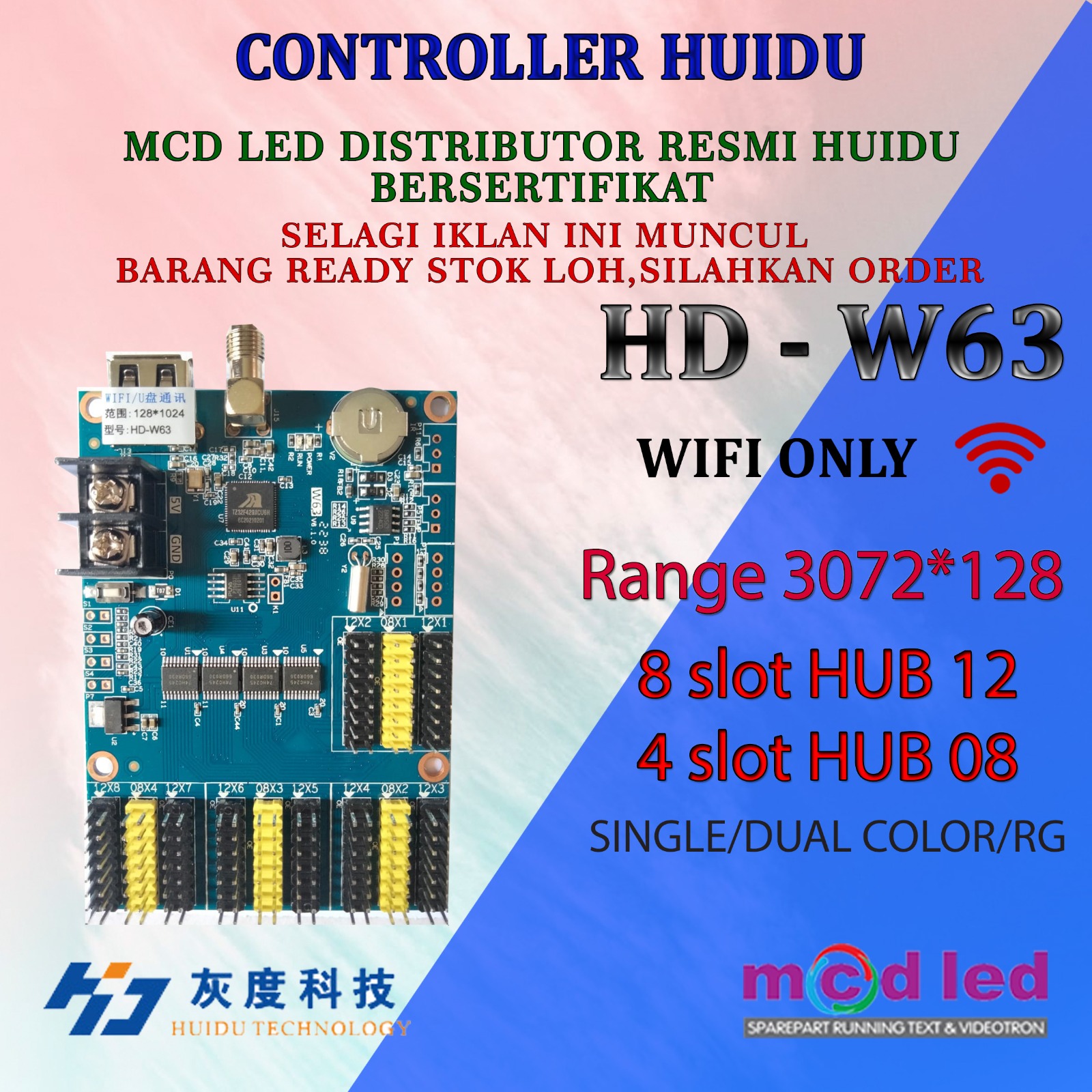

LED display controller HD-W63 (WIFI +USB Port)

Features
Types of control card     : Single Color/ Dual Color /Tricolor
Control range                   : Single color:1024W*128H 3072W*32H Dual color: 512W*128H 3072W*16H
Tri color: 672W*32H 1536W*32H
Scan modes                       : Static, 1/2、 1/3、,1/4、 1/5 、1/6、1/8、1/16 common modes etc
Communication type       : WIFI Wireless + U-Disk
Power supply                    : +4.2-5.5V
Power consumption         : ≤0.5W
Work environment          : -20℃–75℃
Installation dimension     : 96(W)* 66 (H)(mm)
Application Range            : Used indoor outdoor, semi-outdoor, Led Pharmacy Cross signs Showing text
, animation, time, clock etc
Languages                         : Support All languages
Communication distance : 10-30 meter
Application Software        : Software HD2016

Details Parameter
Flash Capacity                   : 2M Byte(Can be expand 8M)
Communication Port         : U-Disk to edit and updated programs
Signal Port                          : 8 OF HUB12 , 4 OF HUB08
Program Quantity             : 1000pcs Programs. also can change program by button or remote if weld
sensor (Remoter can select1-999 Programs)
Area Quantity                     : 8 areas with separate zone, and separated special effects and border
Display Showing                 : Text, Hypertext (GIF、 Picture、 Animation Character、SWF、Video),Excel
, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc
Program Modes                  : Playing by Sequence or by Remoter or by Button

Display effects
1. Support all languages(Software :HD2016
2. Support 7 color effects and 64 colors Gray level (HD-W62/W63/W64)
3. Border functions of Program border, area border and Custom design border.
4. Add Countdown /Count up, Button Countdown / Count up
5. Add Text Rotation of 90°、180°、 270° for display Text function of Hollow、Stroke etc
6. Add payment collection function 7.Updated program by U-disk
8. More than 200 types showing effects
9. Support Second develop SDK 10.More high brightness, more moving speed ,more refresh

Time / Clock /Count Function
1. Support Digital Clock/ Dial Clock / Lunar Time/
2. Countdown /Count up, Button Countdown / Count up
3. The font、size、color and position can be set freely
4. Support multiple time zones

Digit Function
1. Used in Parking place、Scoring device、Calculate by piece.
2. From Minimum to Maximum, from Maximum to Minimum

Expand function
Remote function、temperature、humidity、brightness etc. (If weld sensor) .Remoter can select1-999 Programs

Brightness Control
Brightness setting by Custom、Automatic(weld sensor) 、 by time period regulation

Automatic close /open display
Support close /open display by time automatically

Port Definition:
The control board has 8 OF HUB12, 4 OF HUB08. HUB12 Port HUB08 Port
