| Model
|

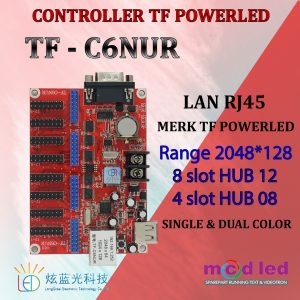

TF-C6NUR
|
| Function introduction | Multi-area displays,network communication,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card. |
| Usage | indoor/outdoor |
| USB function: | USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB. |
| Pixel | Single colour2048x64;1024×128 Double colour1024x64;512×128 |
| Ports | four 08 ports; eight 12 ports; |
| Scanning mode | support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module. |
| Storage | 2M |
| Program number | Storage for maximum program number:20.Supported windows,with no more than 10 items for each. |
| Display | rain,fountain,scroll and much more |
| Border | support many Color border,Picture border |
| Flash format | support GIF,SWF |
| Image format | support BMP,JPG,GIF,WMF,ICO |
| Brightness | Level 16 highlighted,support manual |
| Screen switch | manual |
| Test button | On-board test button,Can switch over the |
| Extension function: | Temperature sensor,Temperature&humidity sensor,Brightness sensor,RF,Monochrome expand height,Through to 75 full-color interface. |
| Electrical parameters | +5V DC(4.5V～6V),Power consumption<0.5W |
| Working temperature | -30℃～70℃ |
| Size | 80mm*110mm |
