Brand : HUIDU

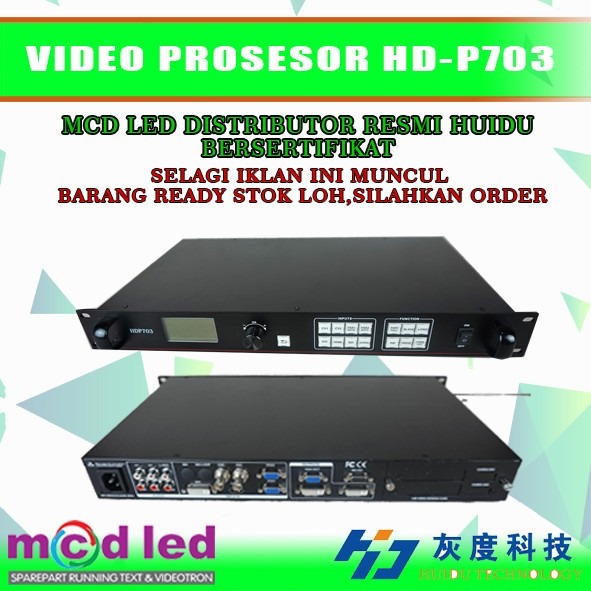

(Front Panel)
CV1 : Enable CVBS(V)input
VGA1/AUTO : Enable VGA 1 input auto revise
VGA2/AUTO : Enable VGA 2 input auto revise
HDMI : Enable HDMI input
LCD : Display the parameters
FULL : Full screen display
CUT : Seamless switch
FADE : Fade in Fade out switch
Rotary : Adjust the menu position and parameters
CV2 : Enable CVBS2(2)input
DVI : Enable DVI input
SDI : Enable SDI(optional)
AUDIO : Switch part/full display
PART : Partial Screen display
PIP : Enable/Disable PIP function
LOAD : Load previous setting
Back : Cancel or return
BLACK : Black input
(Rear Panel)
DVI INPUT
QUANTITY : 1
CONNECTOR : DVI-I
STANDARD : DVI1.0
RESOLUTION : VESA standard, PC to 1920*1200, HD to 1080P
VGA INPUT
QUANTITY : 2
CONNECTOR : DB 15
STANDARD : R、G、B、Hsync、Vsync: 0 to 1 Vpp±3dB (0.7V
Video+0.3v Sync)
RESOLUTION : VESA standard, PC to 1920*1200
CVBS (V) INPUT
QUANTITY : 2
CONNECTOR : BNC
STANDARD : PAL/NTSC 1Vpp±3db (0.7V Video+0.3v Sync) 75 ohm
RESOLUTION : 480i,576i
HDMI INPUT
QUANTITY : 1
CONNECTOR : HDMI-A
STANDARD : HDMI1.3 compatibility backward
RESOLUTION : VESA standard, PC to 1920*1200, HD to 1080P
SDI INPUT (optional)
QUANTITY : 1
CONNECTOR : BNC
STANDARD : SD-SDI, HD-SDI, 3G-SDI
RESOLUTION : 1080P 60/50/30/25/24/25(PsF)/24(PsF)
720P 60/50/25/24
1080i 1035i
625/525 line
DVI/VGA OUTPUT
QUANTITY : 2 DVI or 1VGA
CONNECTOR : DVI-I, DB15
STANDARD : DVI standard: DVI1.0 VGA standard: VESA
RESOLUTION :
1024*768@60Hz 1920*1080@60Hz
1280*720@60Hz 1920*1200@60Hz
1280*1024@60Hz 1024*1280@60Hz 1920*1080@50Hz
1440*900@60Hz 1536*1536@60Hz 1024*1920@60Hz
1600*1200@60Hz 2048*640@60Hz 2304*1152@60Hz
1680*1050@60Hz 1280*720@60Hz 3840*640@60Hz
