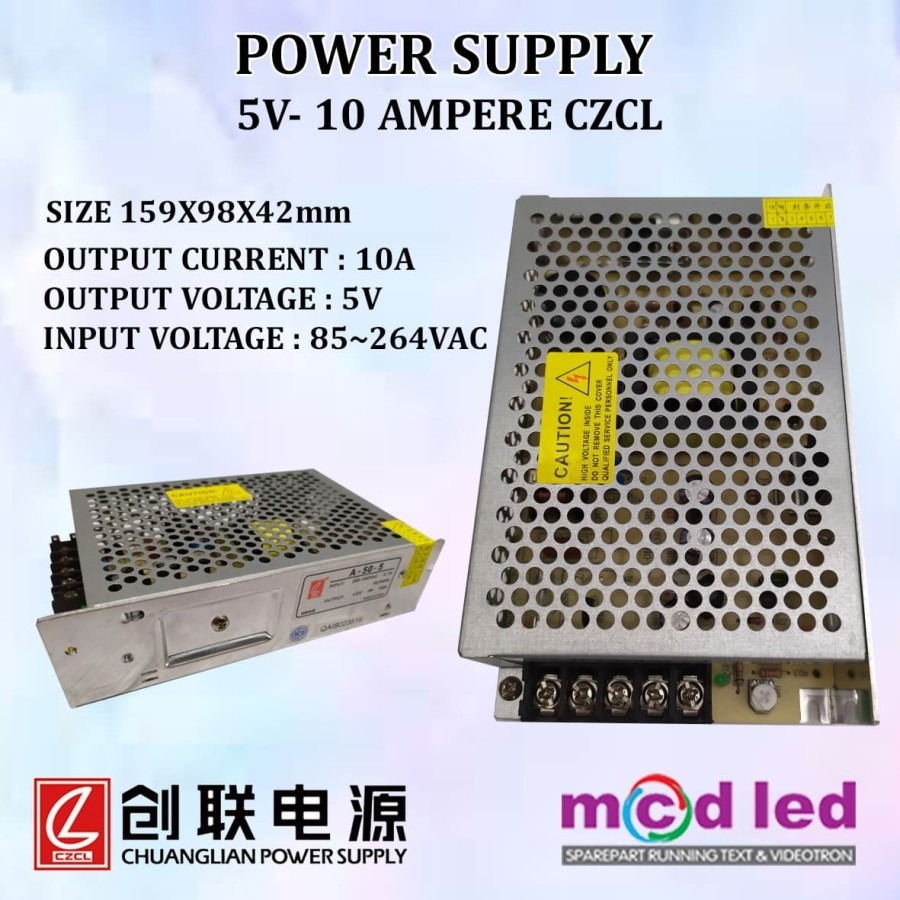

A-50-5 |
5V,10A |
2% |
100mV |
72% |
Features:
Low cost, high reliability
Built-in EMI Filter
Low output ripple&noise
Protections: Over load/ Short circuit
Case: 806 Size: 159*98*42mm
AC Input voltage range……………………………..176-264VAC
Input frequency…………………………………………47-63Hz
AC Inrush current………………………………………Cold start, 40A/ 230VAC
DC adjustment range………………………………. ±10% rated output voltage
Line regulation(full load)……………………..≤0.5%
Output over load protection………………………..110%-150% hiccup mode, auto-recovery
Rise, hold up time……………………………………..50mS, 20mS at full load (typical)
Withstand voltage……………………………………..I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min
Working temperature………………………………..-10℃ to + 40℃@100%, +60℃@ 60% load
Storage temperature…………………………………-20℃~ +85℃,20%~ 95%RH (non-condensing)
Safety standards……………………………………….Design refer to GB4943,UL60950-1,EN60950-1
EMC standards…………………………………………Design refer to GB9254,EN55022 class A
Cooling method…………………………………………Free air cooling convection
