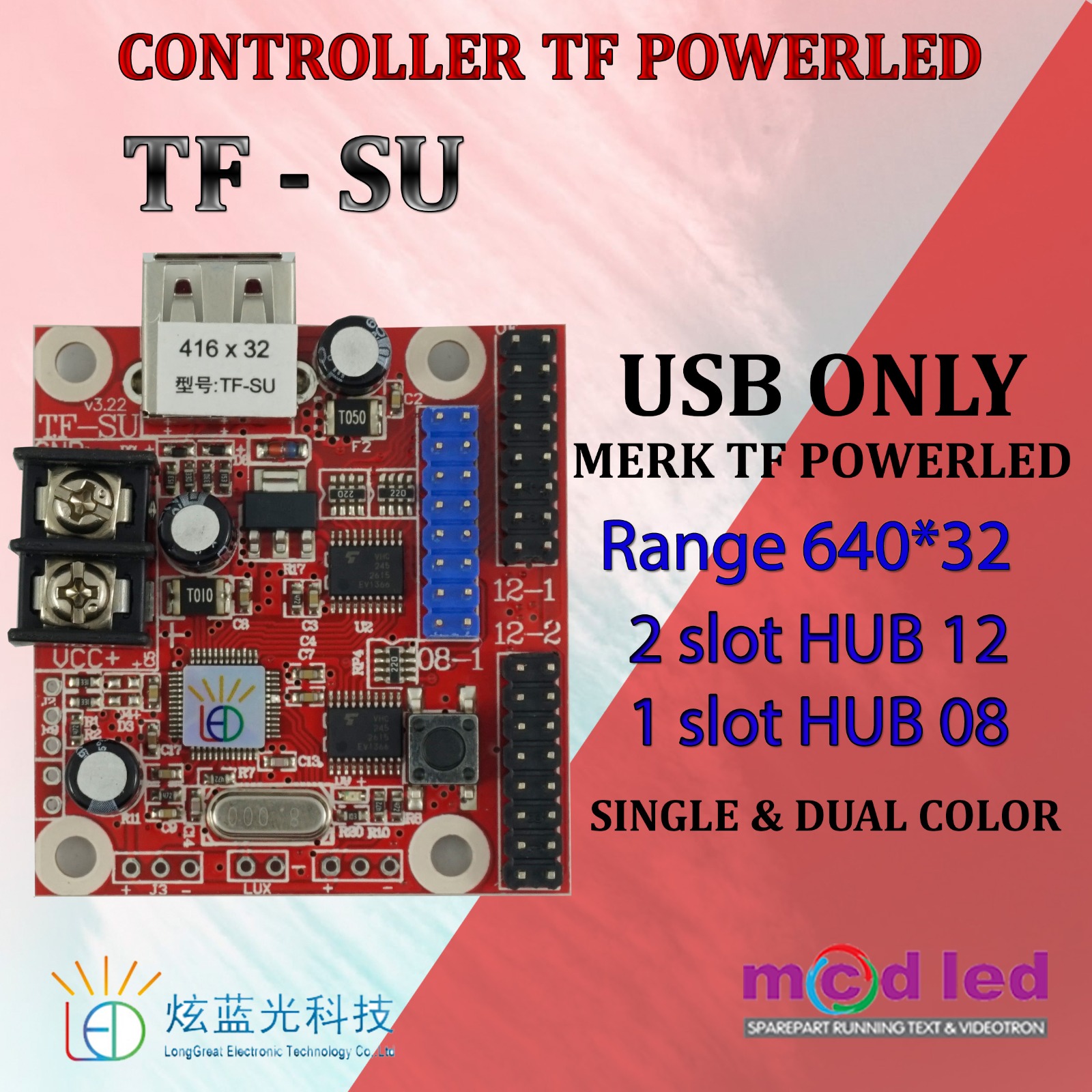

Model
|
TF-SU 2014
|
Function introduction |
Multi-area displays,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card. |
Usage |
indoor/outdoor |
USB function: |
USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB. |
Pixel |
Single colour832x16;416×32;Double colour416x16;192×32 |
Ports |
one 08 port;two 12 ports |
Scanning mode |
support 1/16,1/4,Scan the monochrome,double color module. |
Storage |
512K |
Program number |
Storage for maximum program number:20.Supported windows,with no more than 10 items for each windowns information. |
Display |
rain,fountain,scroll and much more |
Border |
support many Color border,Picture border |
Flash format |
support GIF,SWF |
Image format |
support BMP,JPG,GIF,WMF,ICO |
Brightness |
Level 16 highlighted,support manual |
screen switch |
manual |
Test buttons |
Test buttons on-board,can switch over to test mode and color test mode. |
Electrical parameters |
+5V DC(4.5V~6V),Power consumption<0.5W |
Working temperature |
-30℃~70℃ |
Size |
50mm*47mm |
|
|
