Control card |

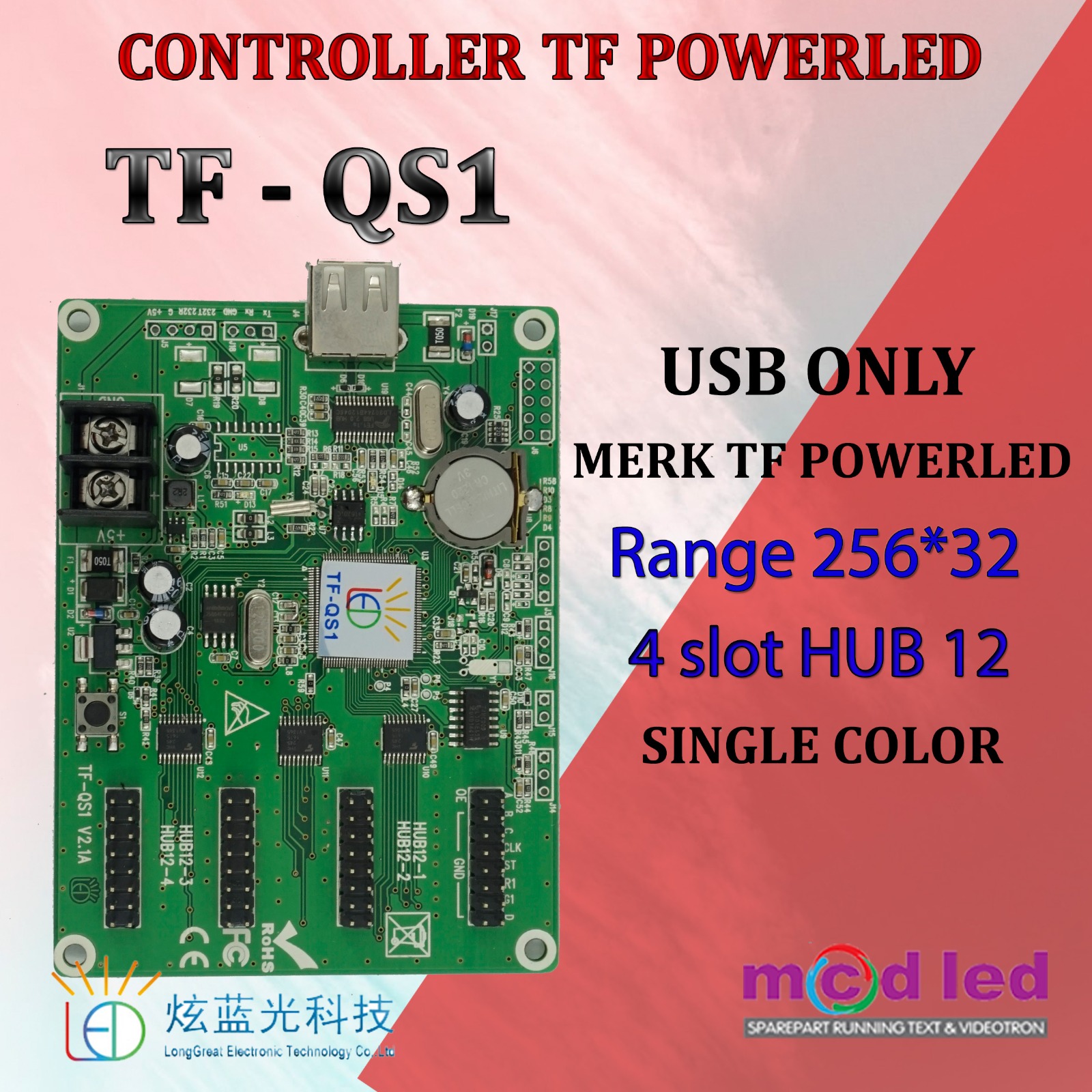

TF-QS1 |
|
Function |
Arbitrary partition,Multi partition arbitrary superposition,Program background animation,,Streamer word,Text strokes,U-disk Smart scan pixels,support coss screen. |
|
Interface |
U-disk |
|
U-disk function |
support U-disk uopdate program,U-disk adjust brightness,U-disk set the screen parameter. |
|
Control range |
256×32 |
|
HUB board |
4pcs HUB12 |
|
Scan type |
Support 1/16,1/8,1/4,1/2,static,support smart settings,U-disk smart scan. |
|
Memory |
8M |
|
Program |
Maximum support 200 programs,support 16 partitions play,Partitions can overlap16,eahc widow support 200 texts. |
|
Effect |
45 kinds of action |
|
Colorful border |
support many Colorful borders,support picture user-defined borders. |
|
content type |
Video,Text,flash,picture,animation,timing,count down,clock,Temperature,humidity. |
|
Play type |
program support playing by turns,by timing,by date,by week,by time quantum. |
|
Time display |
Clock,time,time with seconds,support adjusting font size,can set time zone,support many different time zones play at the same time. |
|
Communication |
U-disk update |
|
Brightness adjust |
16 levels brightness.support Manual adjustment of brightness,support 6 period timing adjust brigtness,if you add a sensor, Auto adjust brightness. |
|
Screen switch |
manual screen switch,support 2 period timing screen swich. |
|
Test Key |
have test key on board,can Switch test mode. |
|
Expand function |
Temperature sensor,temperature and humidity sensor,brightness sensor. |
|
Electrical parameters |
+5V DC(4.5V~5.5V),working ≤3W |
|
working temperature |
-30oC~70oC |
|
Physical size |
100mm×75mm Locating hole:93mmx68mm |
